Capacitors for Capacitive sensing

Posted: September 9th, 2008 ˑ Filled under: Pcomp, Tech resources ˑ  No Comments

These are the recommended types of capacitors to use when using capacitive sensors like this MC34940 from freescale

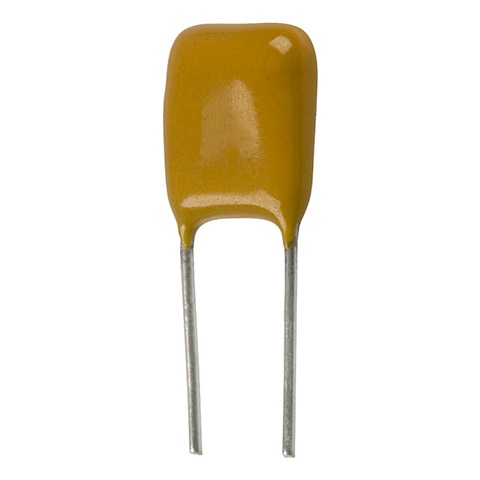

Ceramic CS


Ceramic NPO or COG


PPS film


I believe it is because of their tolerance for temperature change.

this is a good page talking about different capacitor types
